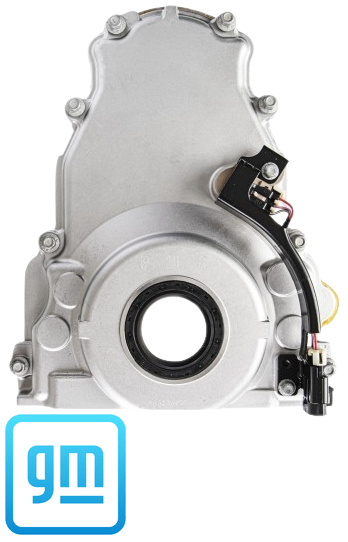

GENUINE GM TIMING COVER KIT WITH CAM SENSOR TO SUIT HSV GTS VE VF LS2 LS3 LSA S/C 6.0L 6.2L V8

This package (GM part number: 12633906) is standard replacement for all GM LS-Series V8's except for LS1. However, it can also be used to adapt a Gen IV camshaft into a Gen III LS1 vehicle when combined with a CAS109081 cam/knock sensor extension as well as an appropriate timing set.

The GM 1-piece timing cover included in this package is built to the highest quality standards to ensure an excellent fit and leak free seal. This kit utilizes a front camshaft sensor allowing both single and multi trigger camshaft sprockets to be used.

Contents:

• 1 X 1-piece timing cover (GM: 12600326)
• 1 X Timing cover gasket, cover to block (GM: 12633904)
• 1 X Cam sensor wiring harness (GM: 12627501)
• 1 X Cam sensor with seal (GM: 12591720)
• 1 X Crank shaft seal (GM: 12585673)
• 1 X Sensor harness bracket
• 1 X Sensor harness retainer
• 2 X Cam sensor to cover bolt (GM: 11588712)
• 9 X Timing cover to block bolt (GM: 11515758)

Vehicle Fitment Guide
