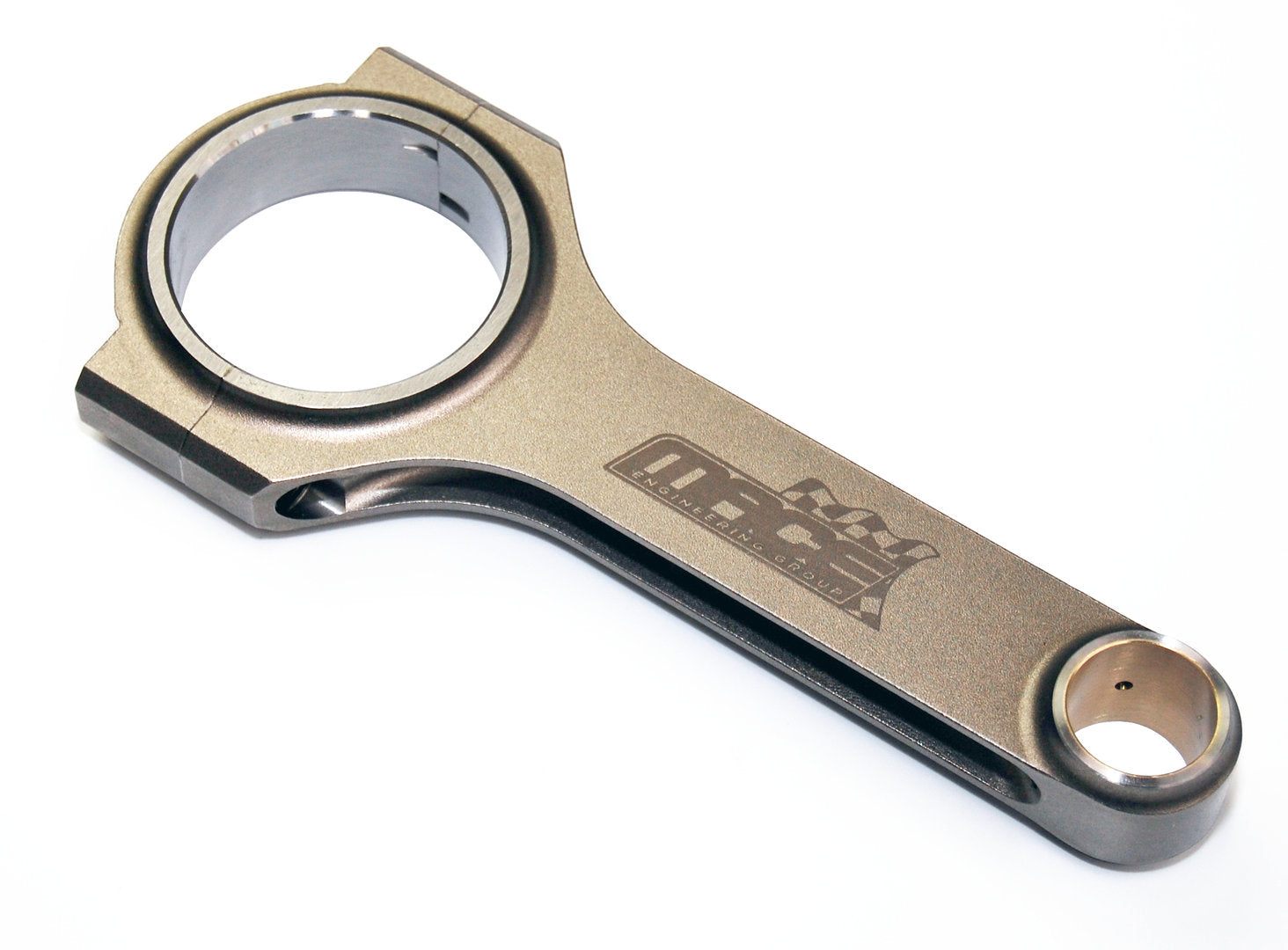

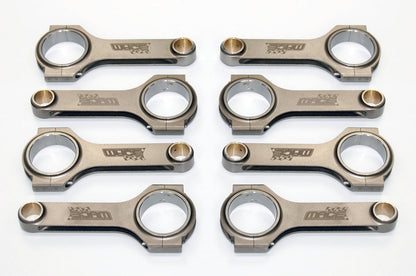

MACE PERFORMANCE 6.125" H-BEAM CONRODS TO SUIT CHEVROLET CORVETTE C5 C6 LS6 LS7 LS9 5.7 6.2L 7.0L V8
In stock
Regular price
$715.00
Sale price
$715.00
Regular price
Unit price
per
Shipping calculated at checkout.
Pay in 4 interest-free payments on purchases of
$30 –
$2,000.
Learn more
Payment methods
Couldn't load pickup availability
Handling Time: Ships within 1 business day
CNR803-C

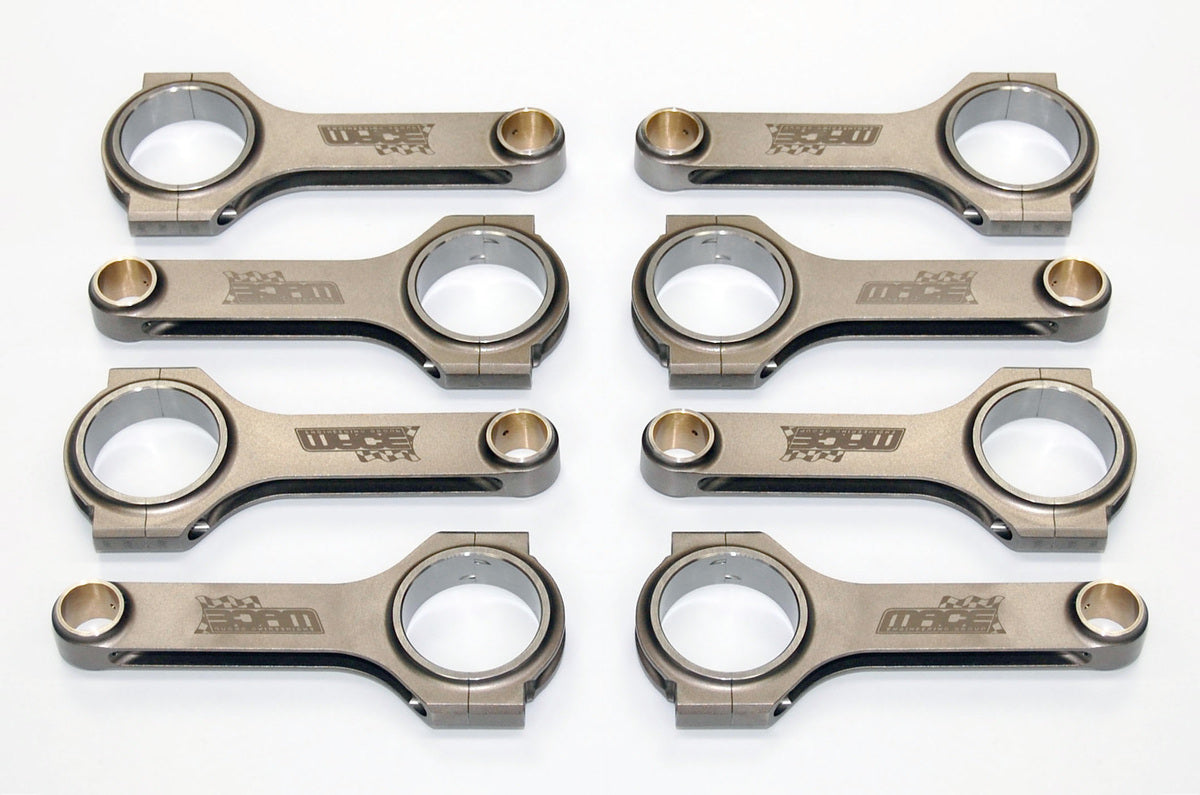

These performance 6.125" H-beam conrods are precision designed to bear harshest of street and race applications. Manufactured from aircraft quality forged steel, this conrod set suits Chevrolet vehicles fitted with LS V8 engines.
Specifications:
- High tensile 4340 forged steel.
- Shot-peened and polished finish.
- Bronze wrist pin bushings.
- Floating style wrist pin.
- Cap screw retention style.
- Center to center length: 155.58mm/6.125"
- Big end bore diameter: 56.507mm/2.225"
- Big end width: 23.9mm/0.941"
- Small end bore diameter: 23.561mm /0.927"
- Small end width: 26.96mm/1.061"
- Connecting rod bolt diameter: 7/16"
- Weight matched sets: +/- 1g
Contents:
- 1 X Bolt pack
- 8 X 6.125" H- beam connecting rod
Vehicle Fitment Guide
Note: The image is for illustrative purposes only.
