MACE VALVE REGRIND GASKET SET AND HEAD BOLTS COMBO PACK TO SUIT HSV LS1 5.7L V8 FROM 10/2003

This premium valve regrind gasket set (VRS) is designed to meet and exceed OEM specifications. Each item of this kit has been checked and evaluated, so you can be assured of quality fitment every time.

The head bolts included in this pack are best suited for standard and mildly modified applications. These are a torque-to-yield (TTY) type bolt which means they can be tightened past their elastic limit, guaranteeing high and uniform clamping forces.

This valve regrind gasket set and head bolts combo pack suits HSV ClubSports fitted with LS1 5.7L V8 or any other vehicle equipped with the same engine.

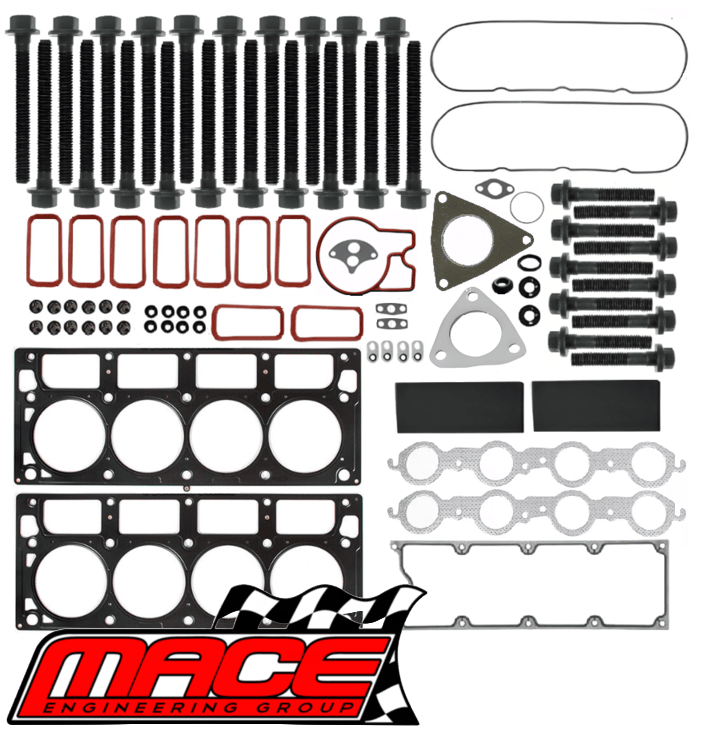

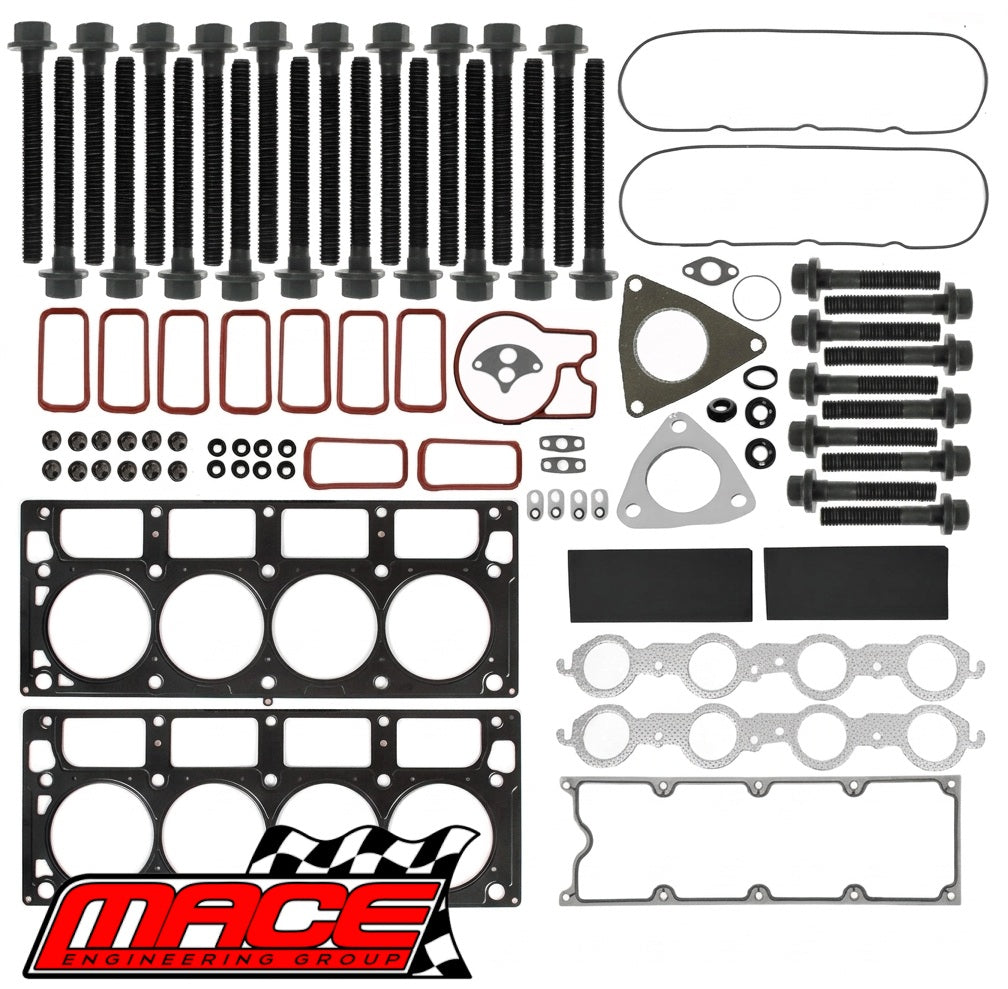

Contents:

• 01 X Throttle body seal
• 02 X Cylinder head gasket
• 02 X Exhaust manifold gasket
• 02 X Knock sensor seal
• 02 X Valve cover seal
• 04 X Water channel gasket
• 08 X Valve cover grommet
• 08 X Intake manifold seal
• 10 X Short cylinder head bolt (M8 x 1.25 x 45)

• 20 X Long cylinder head bolt (M11 x 2.00 x 100)
• 16 X Valve stem seal

Vehicle Fitment Guide

Notes:

• The head bolts included in the pack are enough for one motor.
• When torquing up bolts, an accurate torque wrench or angle gauge will be required to achieve correct clamping forces.

• TTY bolts are only to be utilized once due to permanent elongation and safety concerns.
