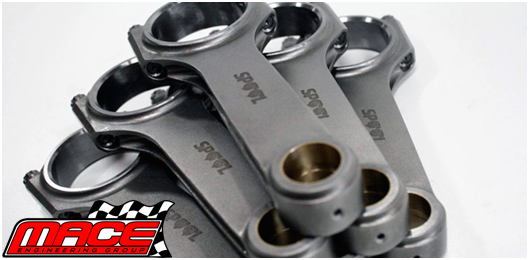

PERFORMANCE FORGED CONRODS FOR FORD FALCON BA BF FG FG X BARRA TURBO 4.0L I6

(To suit all Ford 4.0 Litre In line XR6, XR6 Turbo and Barra engines -182kW 190kW 195kW 240kW 245kW 270kW & 310Kw configurations.)

These are rated to over 1200 horsepower, supporting modifications are necessary.

Features:

• High tensile 4340 forged steel
• 2 Piece forging
• Hardness of HRC36-42
• Dowelled caps for precision alignment
• X-RAY & Sonic tested
• Quenching and heat treated
• Shot peened
• 100% Magnafluxed
• Weight Matched Sets + - 1 gram
• Vacuum degassed to remove impurities
• Small End Pin Size - 22mm

All Connecting Rods come with ARP 2000 rod bolts fitted.

Please Note:

Sometimes the small ends require a lick with a hone to set the pin clearance, as pin sizes do vary ever so slightly.

All pin to bush clearances should be checked and set before assembling depending on the application of the engine. Clearances should never just be assumed.
