STAGE 3 ENGINE REBUILD KIT TO SUIT HOLDEN CAPTIVA CG ALLOYTEC LU1 3.2L V6 FROM VIN 034029

Here at Mace Engineering, we pride ourselves in providing exceptional customer service and always strive to go that extra mile when it comes to it.

After extensive research and development, we've put together an exceptional range of engine rebuild kits at amazing competitive prices for all those performance enthusiasts who want to upgrade their Alloytec V6 engines.

Each component of our engine rebuild kits has been carefully selected to ensure a world of difference for those seeking top-notch engine performance and reliability.

This part is temporarily unavailable, we apologise for any inconvenience caused. Please contact us for further information.

Piston Specifications:

• Piston type: Dish top
• Compression height: 32mm
• Pin type: Full floating
• Dome height: 0.40mm

Piston Ring Specifications:

• Piston ring width: 1.2 x 1.5 x 2.5mm
• Top ring material: Chrome
• Size: Standard

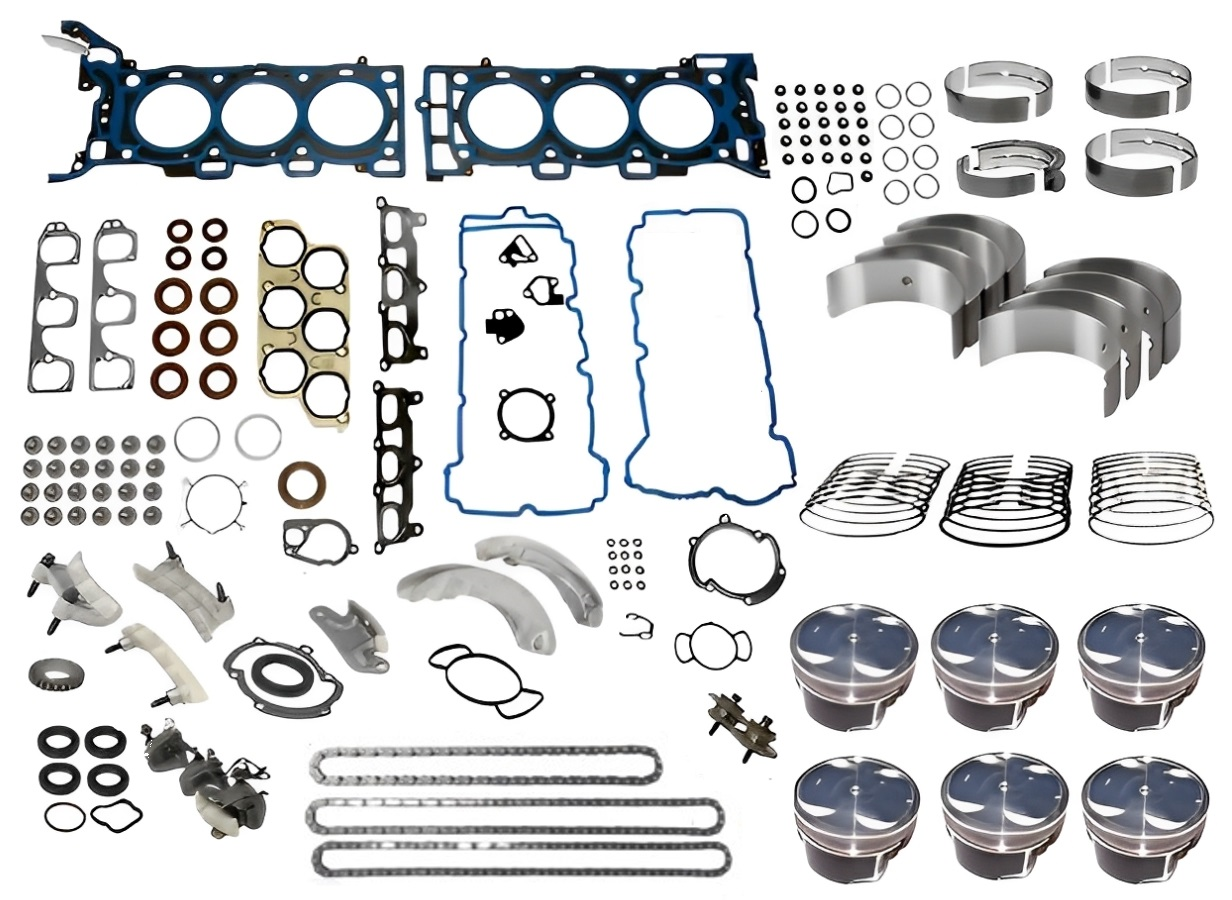

Contents:

• 1 X ACL conrod bearing set
• 1 X ACL main end bearing set
• 1 X Hastings piston ring set
• 1 X Platinum full engine gasket set
• 1 X INA timing chain kit
• 1 X Mace piston set

Vehicle Fitment Guide

For the timing chain kit in this engine rebuild kit, there may be a discrepancy for vehicles built on dates that borderline the change-over of the design of the timing chain. We cannot guarantee what kit you require if this applies to your vehicle. You can confirm by removing one of the cam covers and inspecting the chains that run over the cam gears.

Notes:

• The image is for illustrative purposes only.
• Please refer to manufacturers specifications for the correct installation of piston rings.
• These piston rings are suitable for aftermarket pistons only. Rings for stock pistons can be purchased through another listing. If unsure, please confirm your required ring's width or contact us for further assistance.
• For timing chain kit, a detailed fitting guide is available through the fitting instructions menu.
• We are offering standard sizes of certain parts in our kits; if you want to have a customised kit adjusting to your needs, please feel free to contact us for further assistance.
