STAGE 4 ENGINE REBUILD KIT TO SUIT HOLDEN CAPTIVA CG ALLOYTEC LU1 3.2L V6 TILL VIN 034029

Here at Mace Engineering, we pride ourselves in providing exceptional customer service and always strive to go that extra mile when it comes to it.

After extensive research and development, we've put together an exceptional range of engine rebuild kits at amazing competitive prices for all those performance enthusiasts who want to upgrade their Alloytec V6 engines.

Each component of our engine rebuild kits has been carefully selected to ensure a world of difference for those seeking top-notch engine performance and reliability.

Piston Specifications:

• Piston type: Dish top
• Compression height: 32mm
• Pin type: Full floating
• Dome height: 0.40mm

Piston Ring Specifications:

• Piston ring width: 1.2 x 1.5 x 2.5mm
• Top ring material: Chrome
• Size: Standard

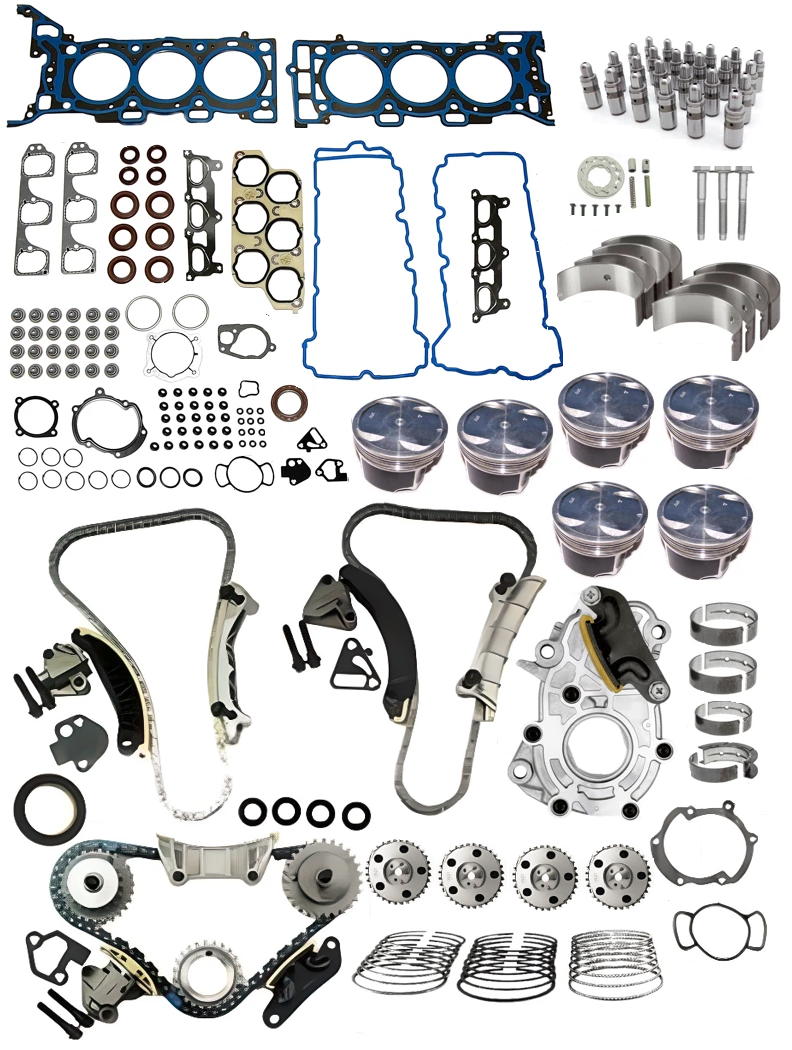

Contents:

• 1 X ACL conrod bearing set
• 1 X ACL main end bearing set
• 1 X Hastings piston ring set
• 1 X Platinum full engine gasket set
• 1 X Dayco timing chain kit
• 1 X Mace piston set
• 1 X Mace Lifter set
• 1 X YSK Oil pump


Vehicle Fitment Guide

For the timing chain kit in this engine rebuild kit, there may be a discrepancy for vehicles built on dates that borderline the change-over of the design of the timing chain. We cannot guarantee what kit you require if this applies to your vehicle. You can confirm by removing one of the cam covers and inspecting the chains that run over the cam gears.

Caution:

Once assembled, the timing chain tensioners need to be fully released to maintain adequate tension. Simply pulling the pins is not enough. All tensioners must be pressed in by hand for the internal mechanism to fully pop out and operate effectively. Following this, the motor is to be rotated by hand one full revolution in a clockwise direction to ensure all parts have been fitted correctly. Failing to follow these steps will result in a noisy timing chain upon start up and will require the motor to be disassembled again to access the tensioners.

Notes:

• The image is for illustrative purposes only.
• The oil pump guide may not fit on some engines.
• This timing chain kit includes 13.4 mm main morse chain and 2 roller chains.
• A detailed fitting guide of timing chain is available through the fitting instructions menu.
• Please refer to manufacturer’s specifications for the correct installation of piston rings.
• These piston rings are suitable for aftermarket pistons only. Rings for stock pistons can be purchased through another listing. If unsure, please confirm your required ring's width or contact us for further assistance.
